AdversaryViewController Class Reference

Controller for an Adversary. More...

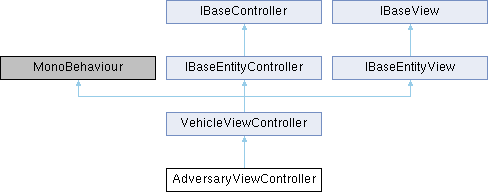

Inheritance diagram for AdversaryViewController:

Public Member Functions
override void	Awake ()
override void	Init (AdversaryCategory cat, Color color)
	Initializes the Adversary entity with the specified category and color.
void	Init (Adversary adversary)
	Initializes the Adversary field with the specified Adversary.
override void	OnChangePosition (float x, float y)
	Moves the Adversary GameObject and, if available, the first Waypoint of the Adversary.
override Sprite	GetSprite ()
	Gets the sprite for this adversary.
override void	OnChangeCategory (AdversaryCategory cat)
	Called when the category of this adversary changes. Changes the sprite of this adversary based on the new category and sets the size of the BoxCollider2D accordingly.
BoxCollider2D	GetCollider ()
	Gets the BoxCollider2D component of this adversary.
override void	Select ()
	Selects this adversary, the pathController, if available, and signals the SnapController to ignore clicks.
override void	Deselect ()
	Deselects this adversary, the pathController, if available, and signals the SnapController not to ignore clicks.
override void	Destroy ()
	Removes this adversary from the main controller and destroys it and the PathController.
override void	OnChangeColor (Color color)
	Called when the color of this adversary changes. Sets the color of the sprite and path controller accordingly and refreshes the entity list of the main controller.
override BaseEntity	GetEntity ()
	Returns the Adversary.
override void	OpenEditDialog ()
	Opens the edit dialog for this adversary.
override void	ShouldIgnoreWaypoints (bool b)
	Sets whether to ignore waypoints for this adversary and its path controller. If waypoints should not be ignored, moves the Adversary and its first waypoint to the nearest waypoint.
Public Member Functions inherited from VehicleViewController
virtual void	Awake ()
abstract Sprite	GetSprite ()
	Returns the Sprite associated with the vehicle.
Location	GetLocation ()
	Gets the location of the vehicle.
abstract void	Init (AdversaryCategory cat, Color color)
	Initializes the vehicle view controller with the specified category and color.
virtual void	OnChangePosition (float x, float y)
	Changes the position of the entity to the given coordinates.
virtual void	OnChangeRotation (float angle)
	Changes the rotation of the entity to the given angle.
virtual void	OnChangeCategory (AdversaryCategory cat)
	Changes the category of the entity to the given category.
void	OnChangeModel (EntityModel model)
	Changes the model of the entity to the given model.
void	OnChangeID (string id)
	Changes the ID of the entity to the given ID.
virtual void	Select ()
	Selects the entity and changes its position and material.
virtual void	Deselect ()
	Deselects the entity and changes its position and material.
abstract void	Destroy ()
	Destroys the entity.
Vector2	GetPosition ()
	Gets the position of the entity.
void	Update ()
	Updates the entity's position and rotation.
void	OnMouseDrag ()
	Handles the OnMouseDrag event to move the entity.
void	OnMouseDown ()
	Handles the OnMouseDown event to select and place the entity.
bool	IsIgnoringWaypoints ()
	Returns whether the entity should ignore waypoints.
virtual void	ShouldIgnoreWaypoints (bool b)
	Sets whether the entity should ignore waypoints.
abstract BaseEntity	GetEntity ()
	Gets the BaseEntity instance of the entity.
abstract void	OpenEditDialog ()
	Opens the edit dialog for the entity.
abstract void	OnChangeColor (Color c)
	Changes the color of the entity.
BaseEntity	GetEntity ()
	Returns the entity associated with the controller. This can be Ego or Adversary.
void	Select ()
	Selects the controller.
void	Deselect ()
	Deselects the controller.
void	Destroy ()
	Destroys the controller.
void	OpenEditDialog ()
	Opens the edit dialog for the controller.
bool	IsIgnoringWaypoints ()
	Returns a boolean indicating whether or not the controller ignores waypoints.
void	ShouldIgnoreWaypoints (bool b)
	Sets the value indicating whether or not the controller should ignore waypoints.
Location	GetLocation ()
	Returns the location of the object that the controller belongs to.
void	OnChangeCategory (AdversaryCategory cat)
	Called when the category of the entity changes. </summary Parameters cat The new category of the entity.
void	OnChangeModel (EntityModel model)
	Called when the model of the entity changes.
void	OnChangeID (string id)
	Called when the ID of the entity changes.
void	OnChangePosition (float x, float y)
	Called when the position of the corresponding object changes.
void	OnChangeRotation (float angle)
	Called when the rotation of the corresponding object changes.
void	OnChangeColor (Color color)
	Called when the color of the corresponding object changes.

Public Attributes
GameObject	pathPrefab
Public Attributes inherited from VehicleViewController
Material	selectionMaterial

Protected Member Functions
override void	RegisterEntity ()
	Registers this adversary entity with the main controller.
abstract void	RegisterEntity ()
	Registers the entity with the main controller.

Additional Inherited Members
Protected Attributes inherited from VehicleViewController
SpriteRenderer	sprite
bool	placed = false
Vector2	difference = Vector2.zero
Vector2	lastClickPos = Vector2.zero
SnapController	snapController
MainController	mainController
bool	ignoreWaypoints

Detailed Description

Controller for an Adversary.

Member Function Documentation

Awake()

override void AdversaryViewController.Awake ( )

inlinevirtual

Reimplemented from VehicleViewController.

Deselect()

override void AdversaryViewController.Deselect ( )

inlinevirtual

Deselects this adversary, the pathController, if available, and signals the SnapController not to ignore clicks.

Reimplemented from VehicleViewController.

Destroy()

override void AdversaryViewController.Destroy ( )

inlinevirtual

Removes this adversary from the main controller and destroys it and the PathController.

Implements VehicleViewController.

GetCollider()

BoxCollider2D AdversaryViewController.GetCollider ( )

inline

Gets the BoxCollider2D component of this adversary.

Returns

The BoxCollider2D component of this adversary.

GetEntity()

override BaseEntity AdversaryViewController.GetEntity ( )

inlinevirtual

Returns the Adversary.

Returns

The entity of this adversary.

Implements VehicleViewController.

GetSprite()

override Sprite AdversaryViewController.GetSprite ( )

inlinevirtual

Gets the sprite for this adversary.

Returns

The sprite for this vehicle.

Implements VehicleViewController.

Init() [1/2]

void AdversaryViewController.Init ( Adversary  adversary )

inline

Initializes the Adversary field with the specified Adversary.

Parameters

adversary

The Adversary entity to be initialized

Init() [2/2]

override void AdversaryViewController.Init ( AdversaryCategory  cat, Color  color  )

inlinevirtual

Initializes the Adversary entity with the specified category and color.

Parameters

cat	The category of the Adversary entity
color	The color of the Adversary entity

Implements VehicleViewController.

OnChangeCategory()

override void AdversaryViewController.OnChangeCategory ( AdversaryCategory  cat )

inlinevirtual

Called when the category of this adversary changes. Changes the sprite of this adversary based on the new category and sets the size of the BoxCollider2D accordingly.

Parameters

cat	The new category of this adversary.

Reimplemented from VehicleViewController.

OnChangeColor()

override void AdversaryViewController.OnChangeColor ( Color  color )

inlinevirtual

Called when the color of this adversary changes. Sets the color of the sprite and path controller accordingly and refreshes the entity list of the main controller.

Parameters

color

The new color of this adversary.

Implements VehicleViewController.

OnChangePosition()

override void AdversaryViewController.OnChangePosition ( float  x, float  y  )

inlinevirtual

Moves the Adversary GameObject and, if available, the first Waypoint of the Adversary.

Parameters

x	The x coordinate of the position
y	The y coordinate of the position

Reimplemented from VehicleViewController.

OpenEditDialog()

override void AdversaryViewController.OpenEditDialog ( )

inlinevirtual

Opens the edit dialog for this adversary.

Implements VehicleViewController.

RegisterEntity()

override void AdversaryViewController.RegisterEntity ( )

inlineprotectedvirtual

Registers this adversary entity with the main controller.

Implements VehicleViewController.

Select()

override void AdversaryViewController.Select ( )

inlinevirtual

Selects this adversary, the pathController, if available, and signals the SnapController to ignore clicks.

Reimplemented from VehicleViewController.

ShouldIgnoreWaypoints()

override void AdversaryViewController.ShouldIgnoreWaypoints ( bool  b )

inlinevirtual

Sets whether to ignore waypoints for this adversary and its path controller. If waypoints should not be ignored, moves the Adversary and its first waypoint to the nearest waypoint.

Parameters

b	The boolean value to set for ignoring waypoints.

Reimplemented from VehicleViewController.

---

The documentation for this class was generated from the following file:

• C:/Users/stefa/source/repos/AI_Testing_Simulator/Unity/Assets/Scripts/ViewControllers/AdversaryViewController.cs
